Rubber Pipe Making Machine

  • Rubber Pipe Making Machine
Rubber Pipe Making Machine

I. Features
1. Automatic thermostat circulating vulcanizing box is the vulcanization device of rubber seals. Appearance requirements: Smooth and tidy.

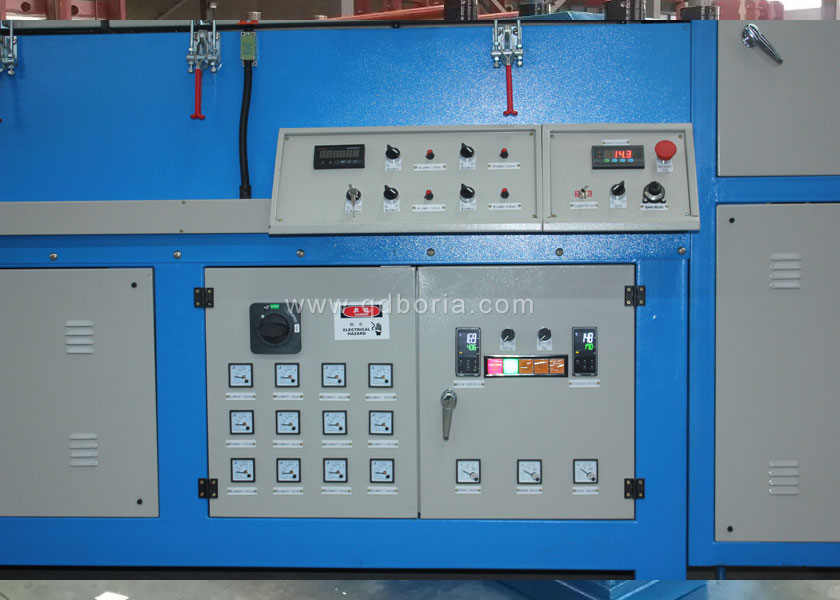

(1) This machine is used to electricity heating tube automatic thermostat which temperature control accuracy of +/-2° C, the temperature range at room temperature to 260 degrees.
(2) Effective length of vulcanization box is 24m, centrifugal fan circulation. It liner with 120stainless steel and the middle insulating layer is fully filled with aluminum silicate cotton.
(3) Vulcanization box is divided into three zones, each zone with trimmer potentiometer which adjusts the speed of the three zones of vulcanizing box to equilibrium; In the middle of each zone with the ventilating device, and removing the emissions generated by the vulcanization process in time in order to ensure the smoothness of the rubber products.
2. The entire production line speed is adjustable to match with speed of the extruder.

II. Technical parameter

Highest temperature of the groove Room temperature 280ºC
Conveying speed 2-28.5 m/min
Conveying mode Heat-resistant belt conveyor
Product tunnel outlet size 160(H)x200mm
Vulcanizing groove 1 piece per set
Voltage 3 phase AC380V 50HZ
effective length 8000m
Width of conveyor belt 140mm
Speed control frequency conversion synchronous control
Device size(LXWXH)(mm) 9500x670x1310

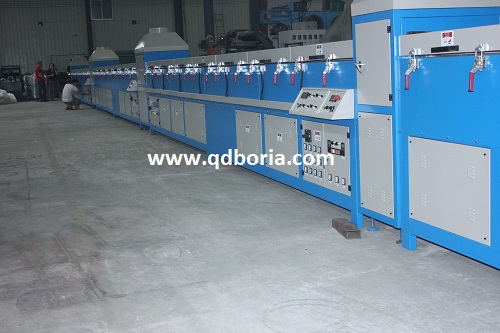

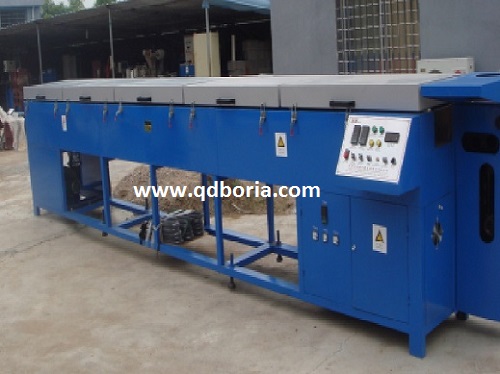

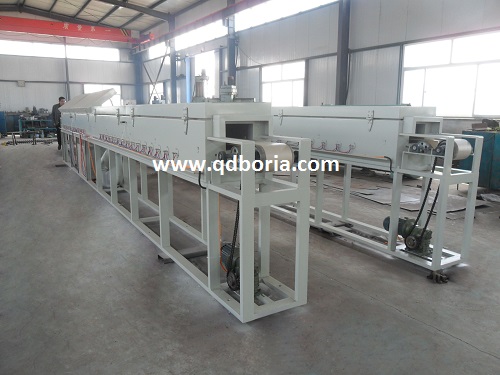

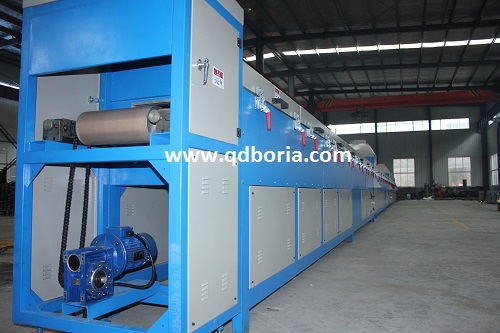

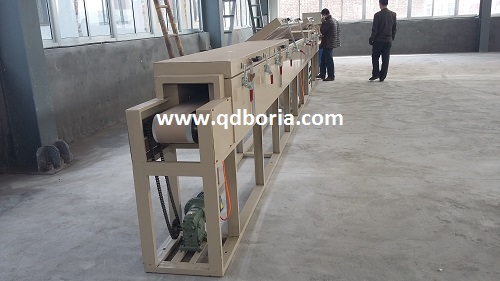

III. Pictures for Reference








IV. Test Running Before Delivery
Before leaving factory, this rubber plate vulcanizing press machine needs to pass 24 hours' test running and guarantee no oil leakage and seeping to avoid unnecessary quality problems.


V. Packaging and Delivery
Equipment painting completed before delivery, and then wrapped with stretch film, to protect the painting surface, we use wooden packaging outside.The key parts of the machine, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases.


VI. Our service
1. Test running: The above machines are all passed inspection of 3~5 hours of full load operation before leaving our factory. And we will take the video and send it to you for inspection. You can use it directly thus saving the time of test-run and expense. And we also warmly welcome to our factory to inspect and test running.
2.Warranty: 12 months after installation, if our machines have any problems, please feel free to contact me. We will solve it for you as soon as possible, and give you the best services.
If you interested in our products mentioned above. Kindly let us know by return email. Then I will supply you with further information. Meanwhile, welcome to visit our factory!
Contact person: Alice (Sales Manager)

FAQ:
1. Q: Where is your factory? How can I visit ?
A: Our factory located in Qingdao city.You can fly to QINGDAO  LIUTING airport,then we can pick you up to our factory for your visiting.We are looking forward to your visiting.
2. Q: How does your factory control the quality of machines and after sales service?
A: Our machines have passed CE, ISO, SGS certification, with best quality and reasonable price. All our machines have 1 year guarantee, will be provided for a lifetime maintenance.
3. What's your payment term?
A: Common is 30% deposit by T/T, the balance paid against shipping documents
Or L/C at sight.
4. Q: Can you design new product for us?
A: We have a professional development team that can make new products according to your requirements.
5. Delivery time of the rubber machines?
This is specially designed machine according to your specific requirement.
 From engineer designing to production completion, it needs about 25 to 35 days.

6. What does your factory do regarding quality control?
 We pay much more attention to the quality controlling from the very beginning to the end of production.
 Every machine will be fully assembled and carefully tested before shipment.

7. What's the machine quality guarantee?
we provide one year warrenty for our machines.We choose the world's famous brand of components to keep our machine in perfect working condition.

8. Are you able to provide the installation and commissioning of machines overseas? How long will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation.
 Small machine usually takes within 2~3 days.
 Big plant usually takes about 30 days.

9. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order.
The core of our company culture is innovation, quality, integrity and efficiency. Also we have had much good cooperation with world famous rubber production manufacturers. If you come to our factory, we can show you're the user around us.
