Automatic flat plate vulcanizing machine

I. Features of rubber plate vulcanizing press
1. Fame structure
2.This press with PLC control, high production efficiency.
3. The presses heating method with steam heating or electrical heating we can as our clients required to design.
4. Press with automatic warning device, high safety and convenient.
5. The machines used for rubber vulcanization are known as rubber vulcanizing machines.
6. This rubber vulcanizing machine strengthens raw rubber by chemically treating it and make rubber harder and stronger.

This vulcanization machine is extremely useful for testing strength of rubber and find applications in numerous industries.

II. Technical parameter

Model	XLB240× 240×2	XLB350× 350×2	XLB400× 400×2	XLB500× 500×2	XLB600× 600×2/4	XLB700 ×700×2	XLB750 ×850×2/4	XLB900 ×900×2Q
Total Pressure (MN)	0.15	0.25	0.5	0.63	1.00	1.20	1.60	2.00
Plate Distance (mm)	125	125	125	125	125	125	200	300
Working Layer NO.	2	2	2	2	2-4	2	2-4	2
Unit Area Pressure of Hot Plate(Mpa)	2.60	2.04	3.13	2.52	2.77	2.45	2.51	2.47
Plunger Stroke (mm)	250	250	250	250	250/400	250	400	400
Heating Mode	Electricity	Electricity	Electricity/ Steam	Electricity/ Steam	Electricity/ Steam	Electricity/ Steam	Electricity/ Steam	Steam
Motor Power (KW)	2.2	2.2	2.2	2.2	2.2	2.2	3	5.5
Size:(L×W×H)(mm)	1200×350 ×1300	1400×480 ×1380	1600×500 ×1480	1750×600 ×1540	1880×720 ×1680	2000×850 ×1750	2250×1200 ×2200	1400×900 ×2400 (Mainframe)

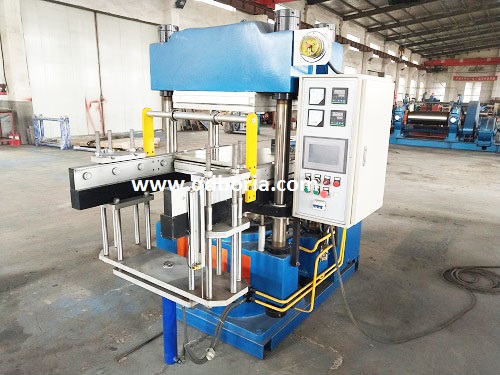

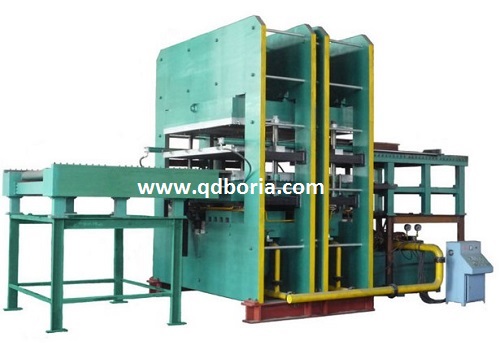

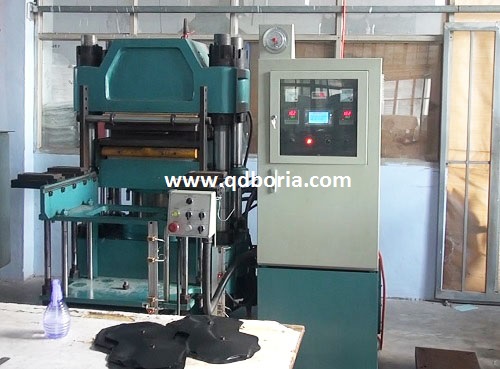

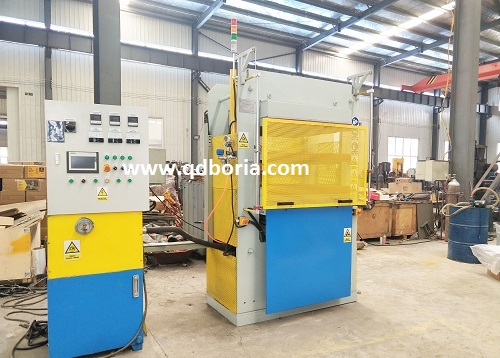

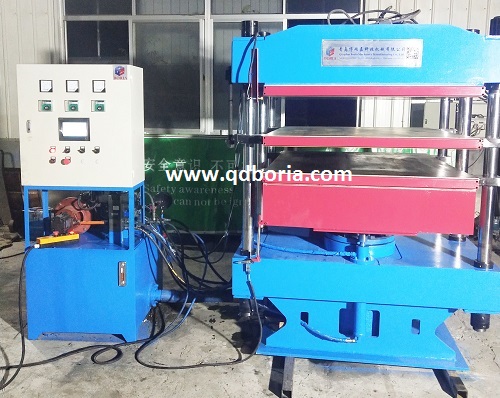

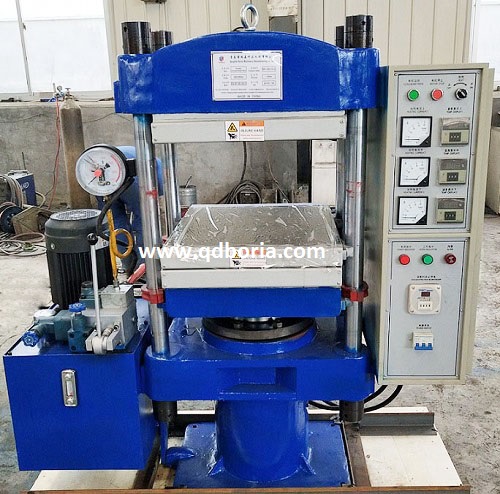

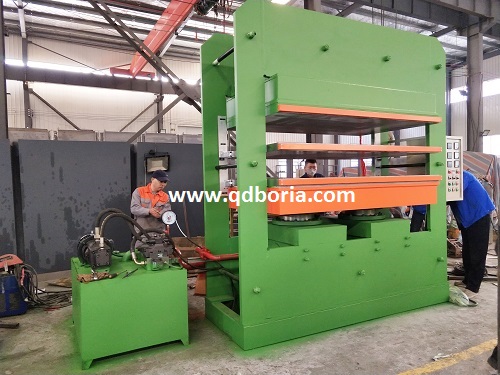

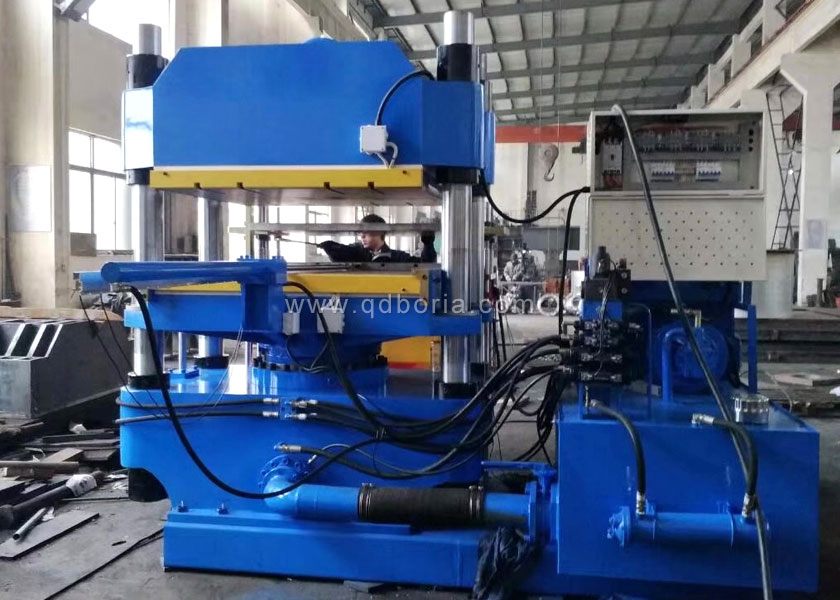

III. Pictures for Reference

IV. Test Before Delivery
Before leaving factory, the machine needs to pass 24 hours' test running and guarantee no oil leakage and seeping to avoid unnecessary quality problems.

V. Packaging
Equipment painting completed before delivery, and then wrapped with stretch film, to protect the painting surface, we use wooden packaging outside.The key parts of the machine, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases.

VI. Our machine list

Our company professional manufacture rubber vulcanizing press (frame type,four column type,lab press and so on), rubber mixing mill, batch off cooler, rubber extruder, rubber strip making machine and tire recycling equipment.

VII. Our service
1. Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.
2. In the process of production, we will take photos and send to customers for their track the progress.
3. Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
4. We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
5. We supply overseas engineer service and help to train your workers to operate the machine.
6. Test running: The above machines are all passed inspection of 3~5 hours of full load operation before leaving our factory. And we will take the video and send it to you for inspection. You can use it directly thus saving the time of test-run and expense. And we also warmly welcome to our factory to inspect and test running.
7.Warranty: 12 months after installation, if our machines have any problems, please feel free to contact me. We will solve it for you as soon as possible, and give you the best services.

FAQ

1. Delivery time of the rubber machines?
This is specially designed machine according to your specific requirement.
From engineer designing to production completion, it needs about 25 to 35 days.

2. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production.
Every machine will be fully assembled and carefully tested before shipment.

3. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.

4. Are you able to give installation and commissioning overseas? How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation.
Small machine usually takes within 2~3 days.
Big plant usually takes about 30 days.

5. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order.
The core of our company culture is innovation, quality, integrity and efficiency. Also we have had much good cooperation with world famous rubber production manufacturers. If you come to our factory, we can show you're the user around us.

6. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao Liuting airport.
We will pick up you at the airport.

If you interested in our products mentioned above, kindly let us know by return email. Then I will supply you with further information. Meanwhile, welcome to visit our factory!
