Rubber Cooling Package Machine

  • Rubber Cooling Package Machine
  • Rubber Cooling Package Machine
Rubber Cooling Package Machine Rubber Cooling Package Machine

Product Description
Rubber Sheet Batch off Cooler / Batch off Unit Cooler
About us

1. 20 years on batch off cooler manufacturing and exporting.
2. Delivery within 35 days.
3. Safety wood or plywood crates packing.
4. Full transportation insurance.
5. Sell to 126 countries on 6 continents.
6. One-stop rubber machinery solution in Qingdao BOJIA.

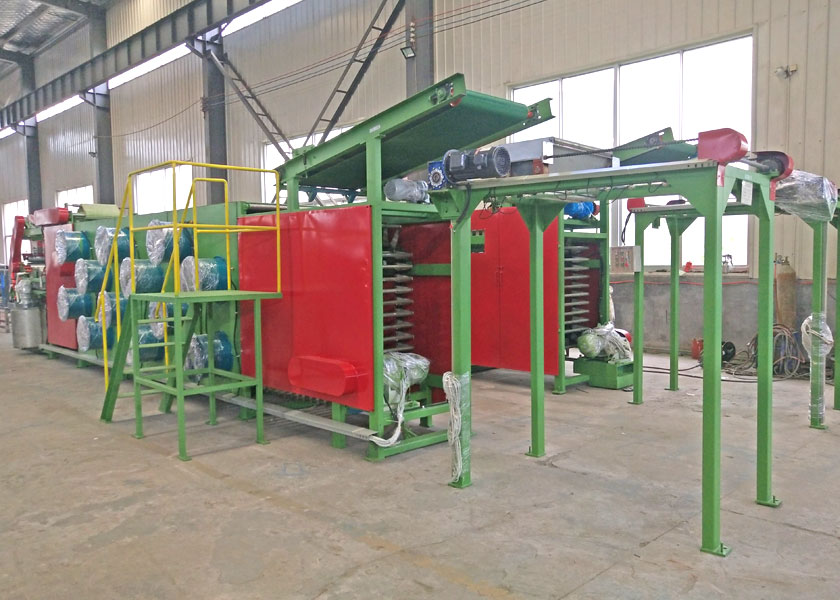

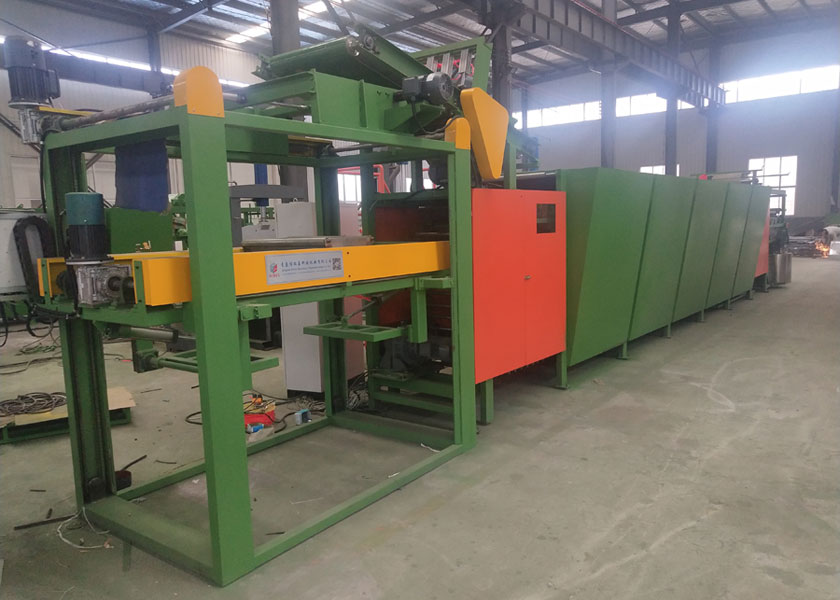

This batch-off cooler can cooling the rubber sheets from high temperature to room temperature, and applicable to any kinds of rubber materials.

1.Function:
The batch-off is used for cooling, folding and depositing the rubber strip that comes from the open mills or twin screw extruder.
2.Features:
1. There are two structure types: overhead and floor-standing types, whose hanging racks are vertically turning with compulsive cooling.
2. The rubber strip hanging bar adopts step by step cylinder or motor-reducer for driving.
3. Structure:
1) The batch-off unit consists of mainframe and electrical control system.

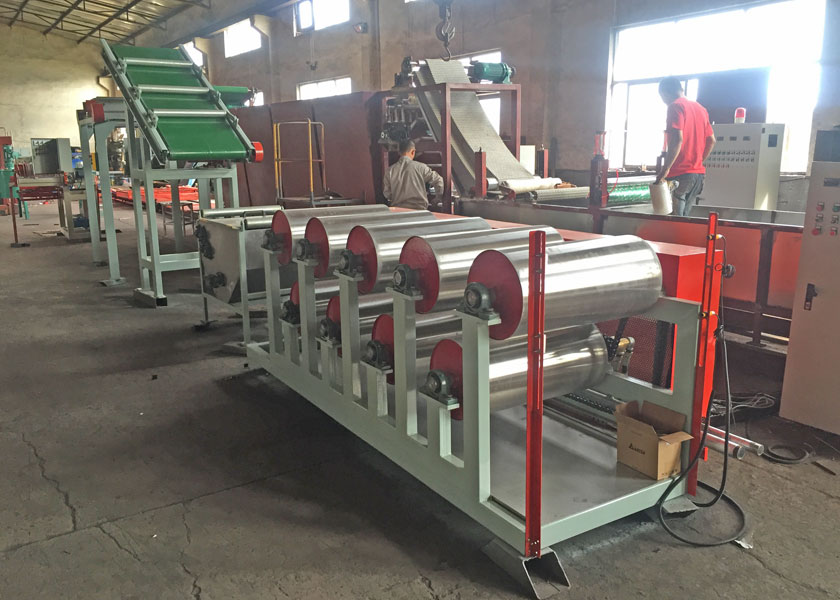

2) The mainframe is composed of splicer, printing, slitter, isolation cooling, lifting device, hanging strip cooling, auto wig wag section, weighing, handrail, platform and supporting bracket etc..
3) The electrical control system consists of main control cabinets, and there are emergency stop device in key areas.
4.Advantages:
1. The clients can choose high or low disposition according to the practical requirements.

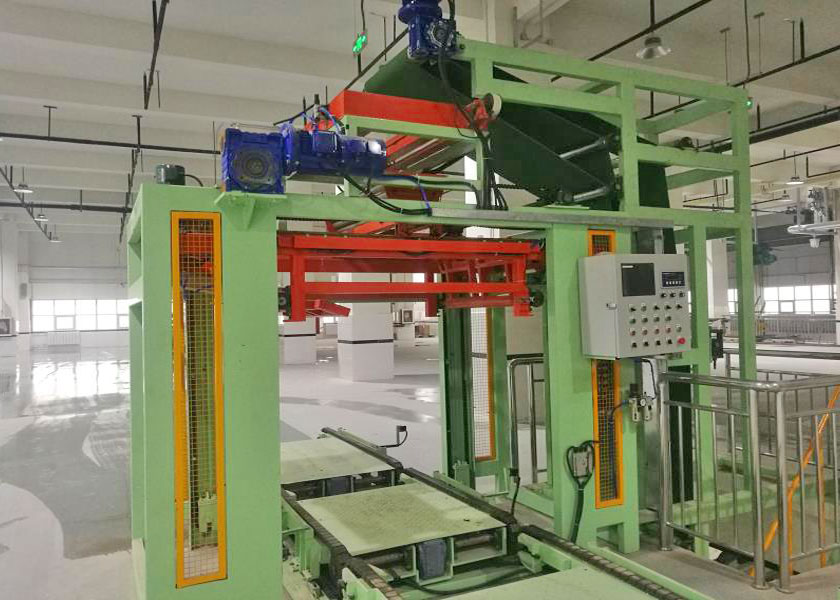

2. The high dispostition batch-off line has hydraulic auto wig wag section, which can battle the rubber strip tidily, the strip tidy ratio‚ȧ100mm
3. There are three working positions for auto entering and outputting of material tray; auto rubber collecting device, auto cutter, it has high automatization and can realize nobody operating.
5.Our Services:
1. 2 years warranty.
2. Engineers available to service machinery overseas.
3. If there is problem, we will give feedback within 24hours.
6.about batch-off unit Price:
The price bases on the following factors
1. Structure: overhead or floor-standing
2. Length: the suitable length for the cusomer's plant
3. Fan's quantity: the suitable quantity of fans which is needed
4. Automatic device: suitable selection of automatic device
NOTES:
1. The rubber batch-off cooler can be designed as a floorid construction or an over-head construction. The sheet can be output on the first floor or on the second floor or both the first and the second floor.
2. The rubber batch-off cooler is a conbined construction. Customer can add or reduce the middle support as required.

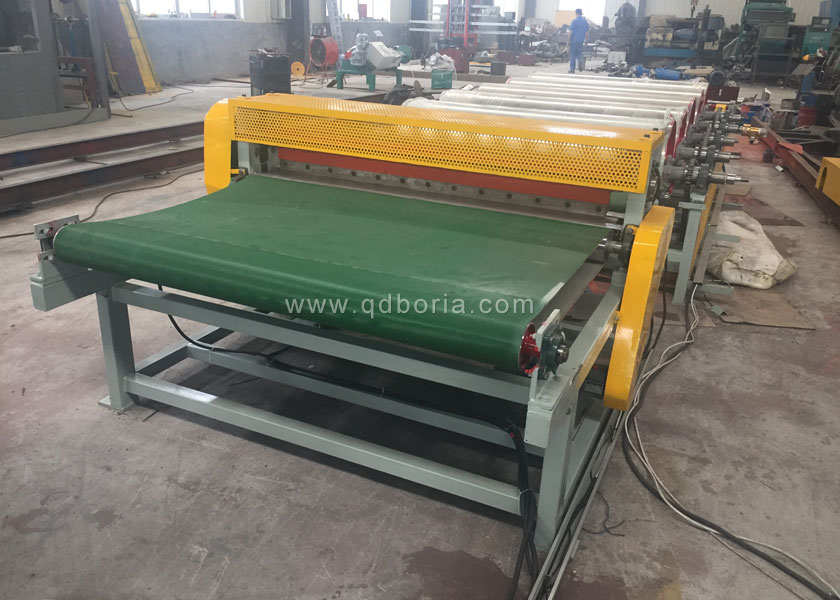

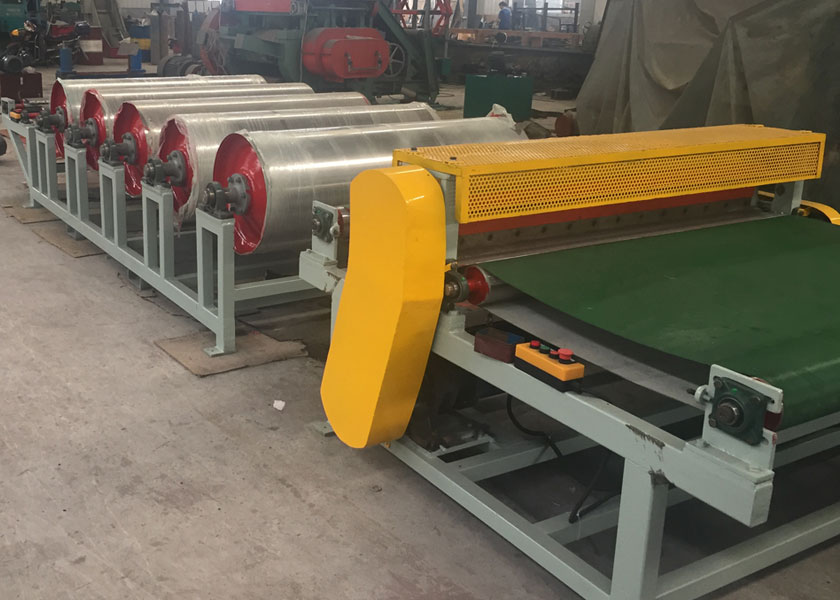

3. Customer can select the transverse strip cutter and the strip slitter according to the processing requirements.


Model
XPG-600 XPW-600 XPG-800 XPG-900
Structure Floor-standing type Chain-Belt type Overhead type Overhead type
Max. Rubber Sheet Width (mm) 600 600 800 900
Rubber Sheet thickness (mm) 4-10 2-12 4-10 6-12
Temperature over room temperature after rubber sheet cooling ( centigrade) 10 10 15 5
Linear Speed of taking-in conveyor (m/min) 3-24 3-24 3-35 4-40
Linear speed of sheet-hanging chain (m/min) 0.82 Chain-belt layer: 5 0.117-1.17 4-40
Hanging height of the sheet hanging bar (m) 1000-1500 Net 1000-1500 1400
No. of cooling fans (set) 12
20 18-26
Total power (kw) 13.7
28.8 18-34
Overall Dimension(mm) L 1425
16800 26630
W 4500
4700 3500
H 3405
3520 5630
