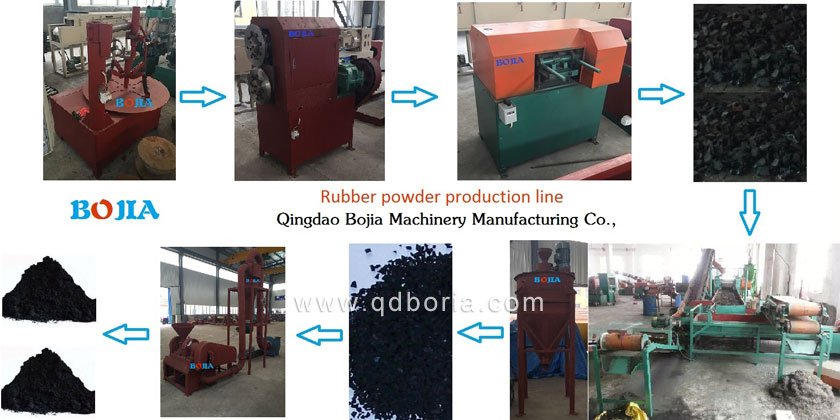

Waste tire recycling equipment

Name

Quantity

Power（KW）

Equipment Function

01

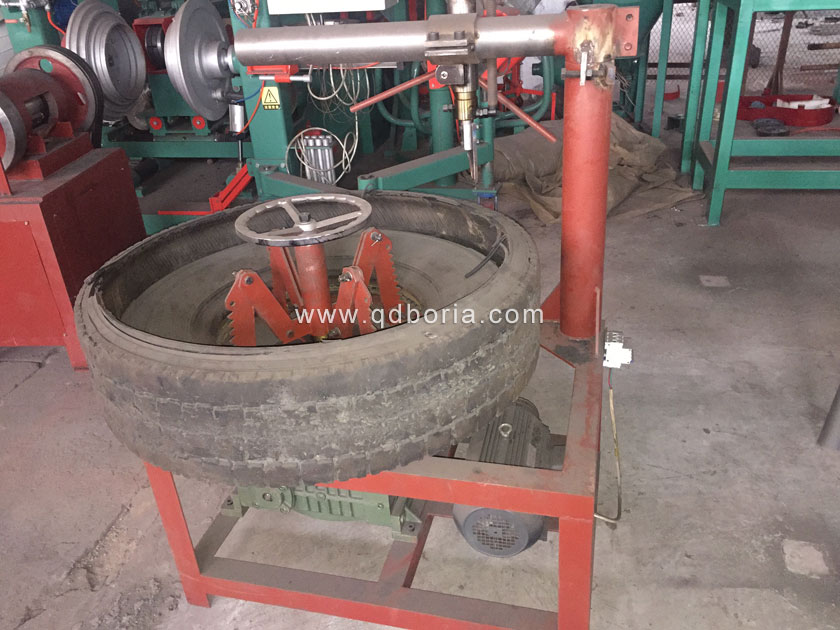

Circle cut machine

1

3

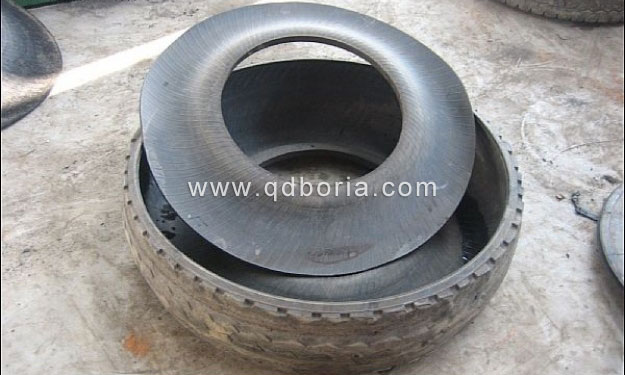

Cut the joint between the sidewall and the roof of the tire with a knife to completely separate the sidewall and roof.

02

Strip cutting machine

1

4

Cut the tire with the sidewall cut off into 3-5 cm rubber strips, keep the tire ring

03

Block cutting machine

1

735

Cut 3-5 cm rubber strips into 3.5 cm rubber blocks

04

Circle mouth wire separator

1

11

Completely separate the thick steel wire and rubber at the tire mouth ring

05

Small conveyor

2

3

Transport the rubber pellets to the host for crushing

06

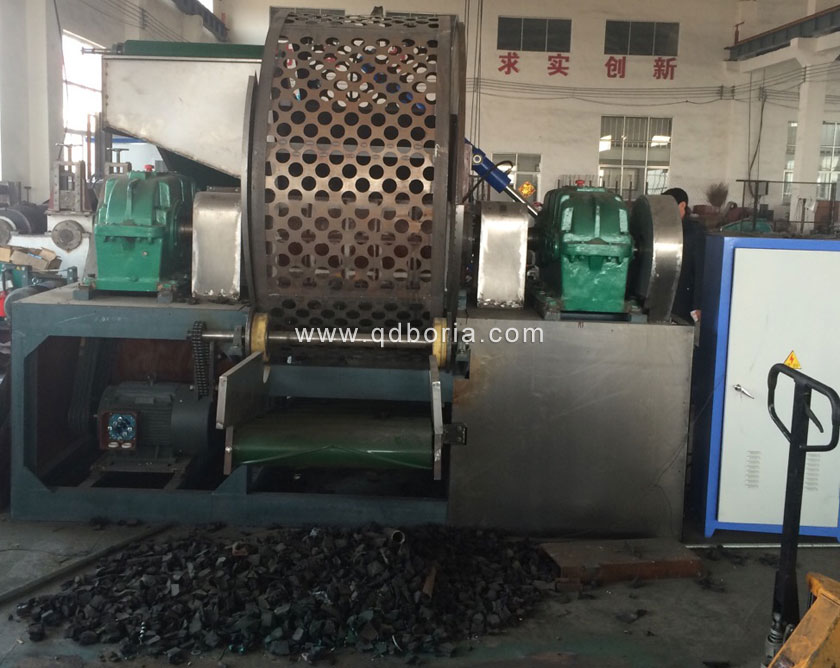

Coarse crusher XKC400/450/560

1

45/60/75

Crush 3.5 cm rubber blocks to 0.1-1 cm rubber particles, configure the machine model according to the output

07

Glue breaker XKP400/450/560

1

45/60/75

Crush the 0.1-1 cm rubber particles to 1.10 mesh rubber powder, and configure the machine model according to the output

08

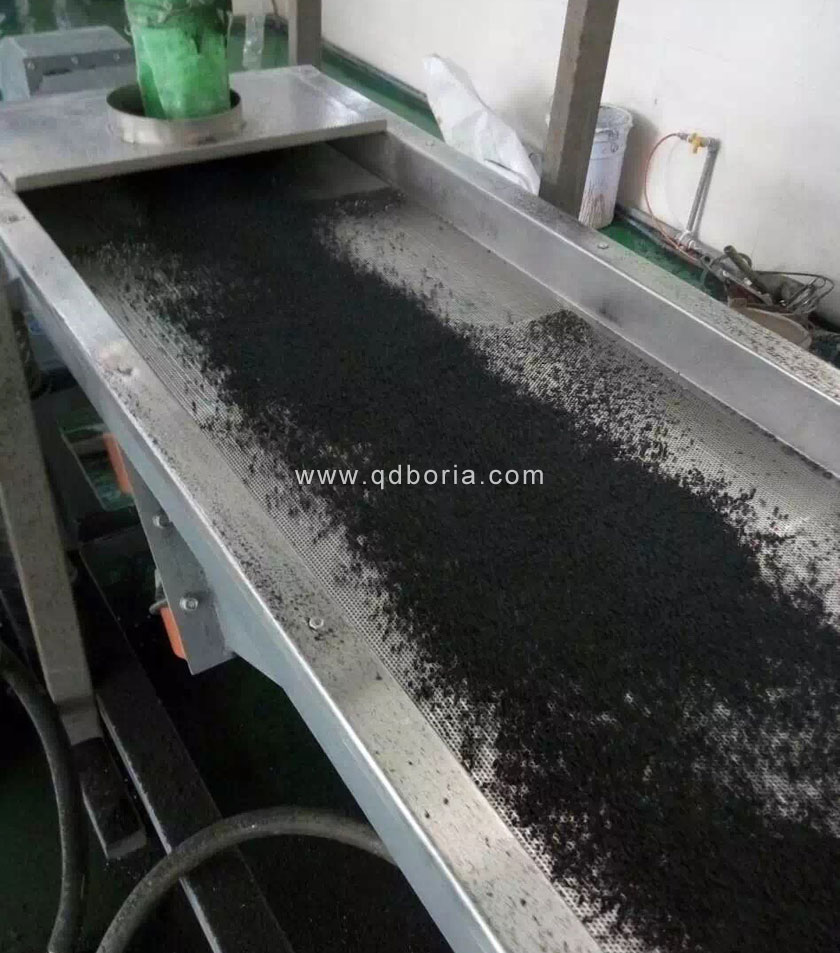

Linear vibrating screen

1

5.5

Sort the rubber powder for the first time
(1-5 mesh)

09

Big conveyor

1

3

Used to transport the rubber powder that does not meet the mesh requirements and return to the middle crusher for recycling

10

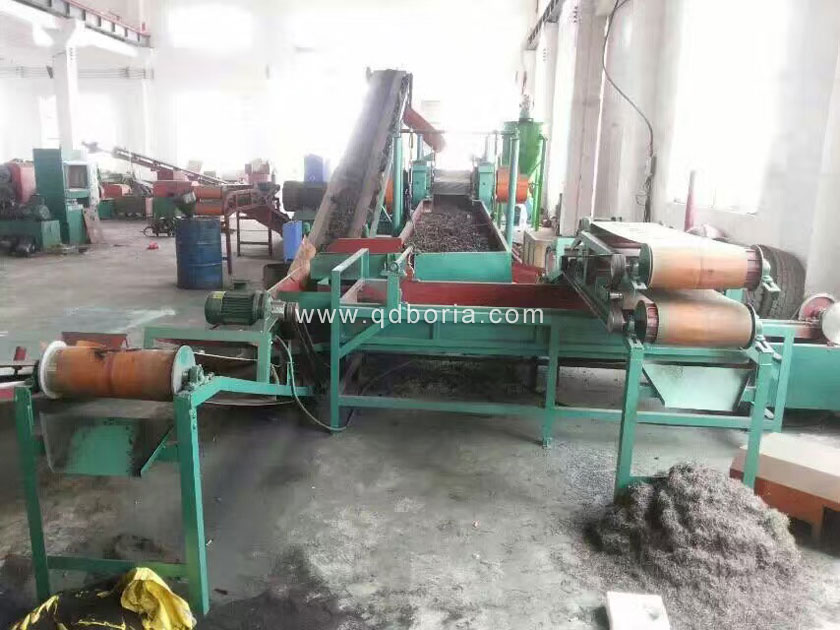

Magnetic separation unit

1

0.75

Extract and separate the fine steel wire in the rubber powder

11

Rubber powder sieve

1

1.5

The rubber powder is sorted for the second time (5-10 mesh)

12

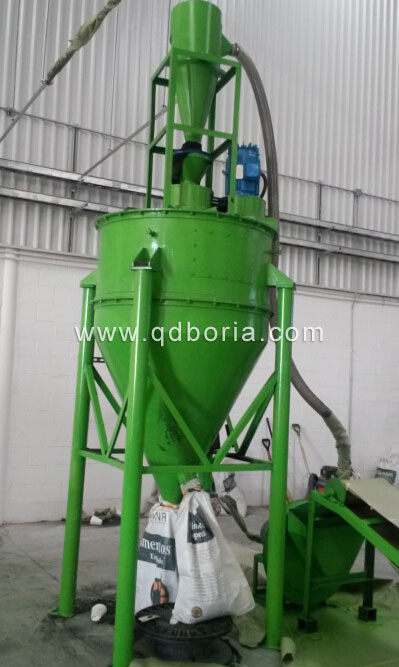

Fiber separation unit

1

5.5

Extract and separate the fibers in the rubber powder

13

Feeding unit

2

1.5

Transport (5-10 mesh) rubber powder to the blanking unit

14

Blanking unit

1

1.5

Transport the rubber powder in the blanking unit to the rubber powder grinder for fine crushing

15

Rubber powder grinder

3

25

The rubber powder is further processed to 20-100 mesh, and the number of machines is configured according to the output

16

Rubber powder sorting sieve

1

5.5

The 20-100 mesh of rubber powder from the grinding machine are sorted into 30 mesh /40 mesh /80 mesh
